CNC Tooling
We stock a large range of CNC Tooling, Turnover Knives, Tool Holders & Collets suitable for solid timber, MDF, particle board, compact laminate, compressed fibre cement, aluminium and plastics. Tooling is sourced from both Australian and European suppliers ensuring a high quality product. Please refer to the links below for available tooling or contact us for further information and advice
Timber, MDF, Particle Board, Compact Laminate & CFC
Disposable Insert Router Bits: Straight, Profiled, Vee Groove, Window & Doors

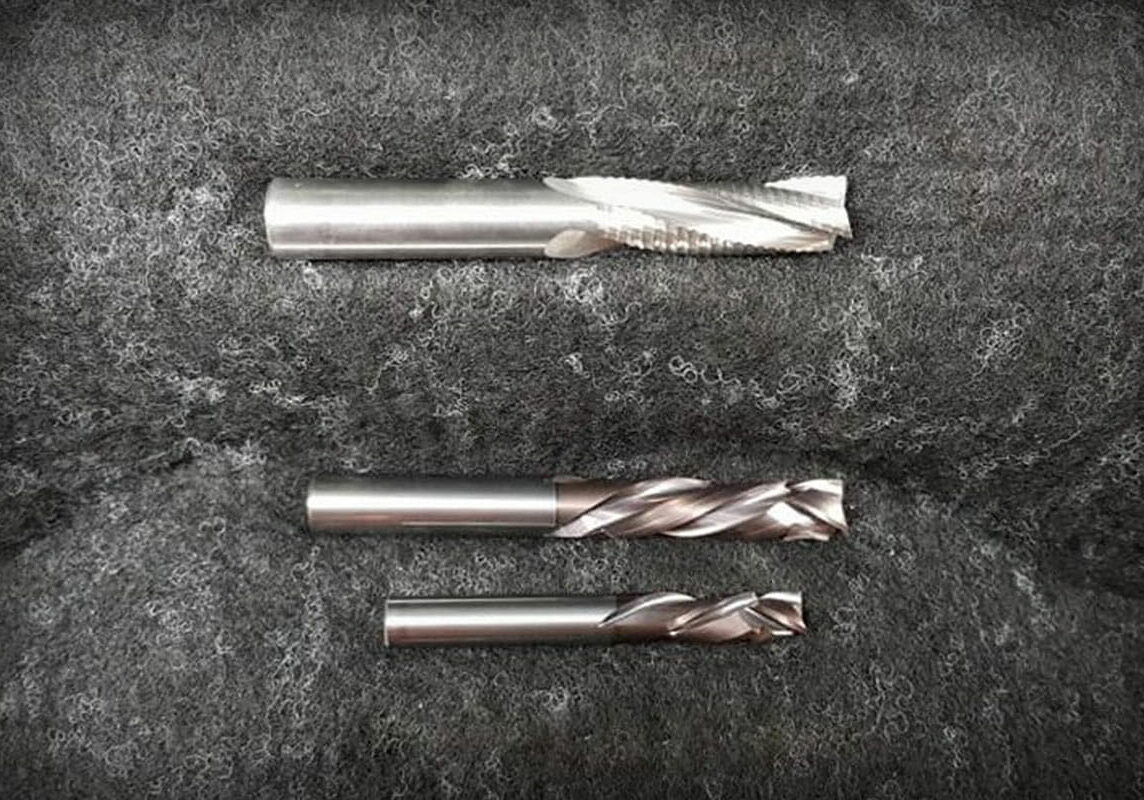

Compression Spirals – Solid Carbide 2 Flute & 3 Flute
Roughing Spirals – Solid Carbide Up Cut & Down Cut – 2 flute & 3 Flute
Finishing Spirals – Solid Carbide Up Cut & Down Cut – 2 flute & 3 Flute
Diamond (PCD) Compression Spirals
Dowel Drills (Carbide Tipped)
Through Hole Drills (Carbide Tipped)
Hinge Boring Drills (Carbide Tipped)
Turnover Knives
PRODUCT CODE | LENGTH (mm) | WIDTH (mm) | THICKNESS (mm) | ADDITIONAL SPECS |
---|---|---|---|---|
DK10510515 | 10.5 | 10.5 | 1.5 | |
DK1161215 | 11.6 | 12 | 1.5 | |
DK121215 | 12 | 12 | 1.5 | |
DK121215-1 | 12 | 12 | 1.5 | T10MG |
DK121452LH | 12 | 14.5 | 2 | R=2 L/H EDGE BAND |
DK121452RH | 12 | 14.5 | 2 | R=2 R/H EDGE BAND |
DK141412 | 14 | 14 | 1.2 | SPURS Z=4 |
DK14142 | 14 | 14 | 2 | d=6.35 (013260) |
DK14142-1 | 14 | 14 | 2 | a=30o d=6.35 |
DK141425 | 14 | 14 | 2.5 | a=30o |
DK151215 | 15 | 12 | 1.5 | |
DK151215LH | 15 | 12 | 1.5 | R=2 D=4.0 L/H EDGE BAND |
DK151215RH | 15 | 12 | 1.5 | R=2 D=4.0 R/H EDGE BAND |
DK151452LH | 15 | 14.5 | 2 | R=2 D=4.0 L/H TIPS |
DK151452RH | 15 | 14.5 | 2 | R=2 D=4.0 R/H TIPS |
DK151453LH | 15 | 14.5 | 2 | R=3 D=4.0 L/H TIPS |
DK151453RH | 15 | 14.5 | 2 | R=3 D=4.0 R/H TIPS |
DK151525-1 | 15 | 15 | 2.5 | |
DK151525-R | 15 | 15 | 2.5 | d=6 R=150 Z=4 |
DK151525-R50 | 15 | 15 | 2.5 | d=6 R=50 |
DK16143 | 16 | 14 | 2 | R=3 D=4.0 2 X RAD |
DK1616515LH | 16 | 16.5 | 2 | a=15o L/HAND TIP N554 |
DK1616515RH | 16 | 16.5 | 2 | a=15o R/HAND TIP N553 |
DK161653LH | 16 | 16.5 | 2 | a=3o L/HAND TIP T436 |
DK161653RH | 16 | 16.5 | 2 | a=3o R/HAND TIP T435 |
DK161753 | 16 | 17.5 | 2 | |
DK17172 | 17 | 17 | 2 | d=3.0 |
DK17174 | 17 | 17 | 2 | d=4.0 |
DK1818195 | 18 | 18 | 1.95 | |
DK190815 | 19.7 | 8 | 2 | LEITZ |
DK19192 | 19 | 19 | 2 | d=4.0 SH/S01SMG COUNTERSINK TIP |
DK201215 | 20 | 12 | 1.5 | |
DK22192T | 22 | 19 | 2 | TRIANGLE SPUR a=30 |
DK300815 | 30 | 8 | 1.5 | LEITZ |
DK301215 | 29.5 | 12 | 1.5 | END CUT |
DK301215-20 | 30 | 12 | 1.5 | 30X12X1.5 a=20o |
DK301215E | 30 | 12 | 1.5 | END CUT |
DK305511 | 30 | 5.5 | 1.1 | |
DK305511X | 30 | 5.5 | 1.1 | CROSS GROOVE |
DK401215 | 40 | 12 | 1.5 | |
DK401215E | 39.5 | 12 | 1.5 | END CUT |
DK500915 | 50 | 9 | 1.5 | |
DK501215 | 50 | 12 | 1.5 | |
DK501215E | 49.5 | 12 | 1.5 | END CUT |
DK501217E | 49.5 | 12 | 1.7 | END CUT 3 HOLE |
DK505511 | 50 | 5.5 | 1.1 | FRONT GROOVE |
DK505511X | 50 | 5.5 | 1.1 | CROSS GROOVE |
MAKTCT | 82 | MAKITA PLANER 1900M |
